Twin Screw Extruder for Compostable Shopping Bag PBAT PLA Plastic Modification Equipment
Product Overview
This JCD20 lab twin screw extruder is specially designed for lab-scale formula testing, new material R&D and small-batch sample production, featuring a compact modular design with high precision and flexible configuration. With a 22mm screw diameter and output range of 3-30kg/h, it balances experimental precision and small-scale production capacity, perfectly matching the needs of plastic formula debugging, material performance testing and small-batch trial production in universities, research institutes and enterprise R&D departments. Equipped with high-precision temperature control, miniaturized core components and an intuitive control system, the bimetallic wear-resistant barrel and low-noise transmission box ensure accurate, stable and quiet operation, making it a reliable experimental tool for material science research and product development.
Technical Specifications
| Model |
Diameter(mm) |
Max.L/D |
Speed(rpm) |
Power(kw) |
Output(kg/h) |
| JCD16 |
16 |
68 |
600 |
1.5/2.2 |
1~5 |
| JCD20B |
22 |
68 |
600 |
3/4 |
3~10 |
| JCD20C |
22 |
68 |
600 |
5.5/7.5 |
5~20 |
| JCD20D |
22 |
68 |
600 |
7.5/11 |
10~30 |
| JCD26B |
26 |
68 |
600 |
5.5/7.5 |
5~20 |
| JCD26C |
26 |
68 |
600 |
11/15 |
10~40 |
| JCD26D |
26 |
68 |
600 |
15/18.5 |
20~60 |
| JCD30B |
30.2 |
68 |
600 |
7.5/11 |
10~30 |
| JCD30C |
30.2 |
68 |
600 |
18.5/22 |
20~60 |
| JCD30D |
30.2 |
68 |
600 |
22/30 |
40~100 |
| JCD35B |
35.6 |
68 |
600 |
15/18.5 |
20~50 |
| JCD35C |
35.6 |
68 |
600 |
30/37 |
60~100 |
| JCD35D |
35.6 |
68 |
600 |
37/45 |
100~150 |
| JCD40B |
41 |
68 |
600 |
15/18.5 |
20~50 |
| JCD40C |
41 |
68 |
600 |
30/37 |
80~120 |
| JCD40D |
41 |
68 |
600 |
37/45 |
100~180 |
Note: All parameters can be customized according to lab R&D requirements.
Core Features & Advantages
-
Compact & Space-saving Design
The 22mm screw and compact frame occupy minimal bench space, fitting seamlessly into laboratory workstations and small R&D environments.
-
High-precision & Stable Processing
Equipped with a closed-loop temperature control system and real-time torque monitoring, it ensures uniform material plasticizing and mixing, providing reliable experimental data for formula optimization.
-
Flexible Modular Configuration
Screw elements and barrel sections can be quickly disassembled and replaced, supporting rapid switching of different material formulas and process parameters for efficient multi-group experiments.
-
Low-noise & User-friendly Operation
The integrated low-noise transmission system and intuitive control panel ensure quiet operation and easy handling, suitable for long-duration experimental testing in labs.
-
Multi-functional Supporting Systems

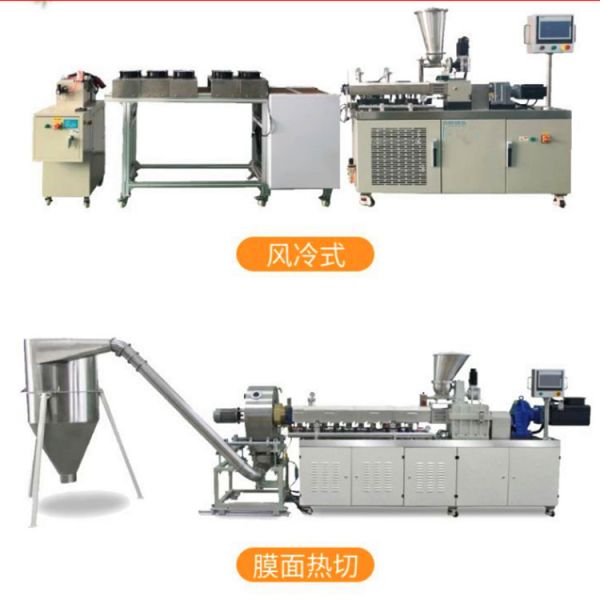

Configurable with a mini vacuum exhaust unit, micro screen changer and optional pelletizing modules (water-cooled strand pelletizing, air-cooled hot cutting), meeting diverse lab sample preparation needs.
-
Wear-resistant & Durable
Barrel and screw adopt bimetallic wear-resistant materials, ensuring long service life even with frequent material switching and experimental cycles.
Product Applications
This JCD20 lab twin screw extruder is ideal for small-scale material research and experimental production, widely used in the following scenarios:
- Plastic Formula R&D: Testing reinforced, filled and functional modification formulas of PP/PE/PS/EVA and other general plastics.
- New Material Development: Experimental processing of biodegradable plastics, specialty polymers and composite materials.
- Academic Research & Teaching: Plastic processing experiments in universities, material performance research in scientific institutes.
- Enterprise R&D: Small-batch trial production of new products, verifying process feasibility before mass production.
- Masterbatch Sample Preparation: Small-volume production of color masterbatch, flame retardant masterbatch and functional masterbatch for formula verification.
